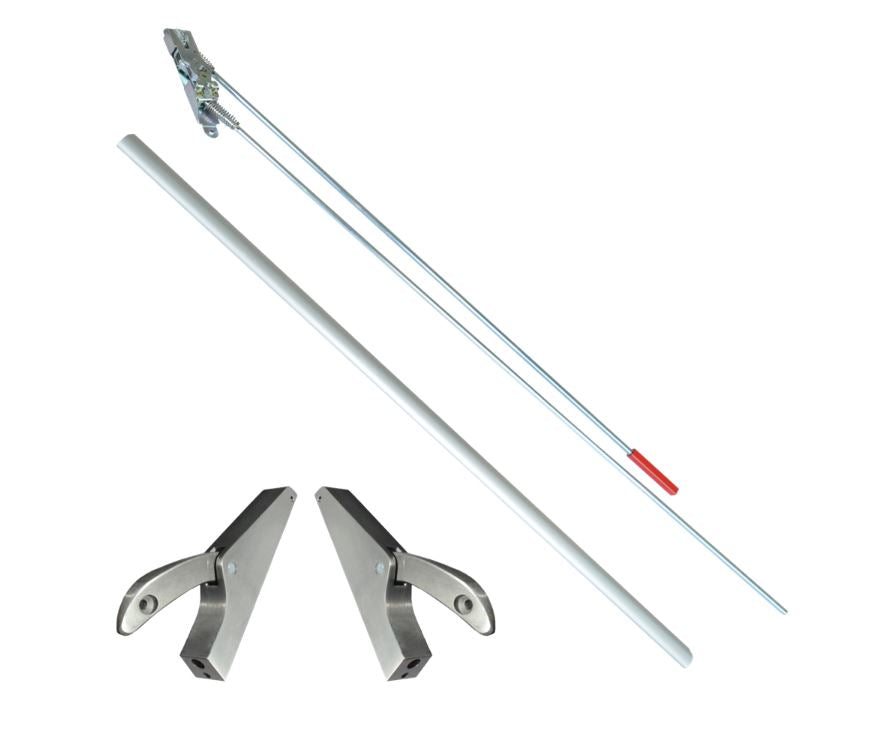

Axim PR7085 Concealed Rod Crash Bar Exit Device

The Axim PR7085 is a concealed vertical rod panic exit device designed for single-leaf timber and steel doors requiring compliance with BS EN 1125. Concealed vertical rods run inside the door leaf and engage strikes at both the top and bottom of the frame, providing secure two-point locking when the door is closed. A single push of the crossbar simultaneously retracts both rods, allowing the door to open immediately — meeting the panic exit requirement without any additional operation from the user.

The PR7085 is non-handed, meaning it can be installed on either left or right hand doors without modification. The concealed rod design keeps the door face clean and is well suited to commercial and public building applications where aesthetics matter alongside function. An outside access device (paddle handle or lever) can be added to allow entry from the secure side.

Key Features

• Tested and certified to BS EN 1125 — suitable for all escape route doors accessible to the public
• CE marked
• Non-handed — suits left and right hand doors without modification
• Concealed vertical rod design — clean appearance, no exposed hardware on door face
• Two-point locking — top and bottom rod engagement for secure closure
• Compatible with outside access devices for entry from the secure side

Applications

Suitable for fire escape doors, final exit doors, and any escape route door in commercial, public, educational, or healthcare buildings where panic hardware is required. For staff-only escape route doors where BS EN 179 (emergency exit) is acceptable instead of BS EN 1125, see our range of emergency exit devices.

Choosing the Right Variant

If your door has a non-standard thickness or requires an extended spindle for a paddle handle, please check the variant options and contact us if you need guidance. Outside access handles and paddles are available separately.

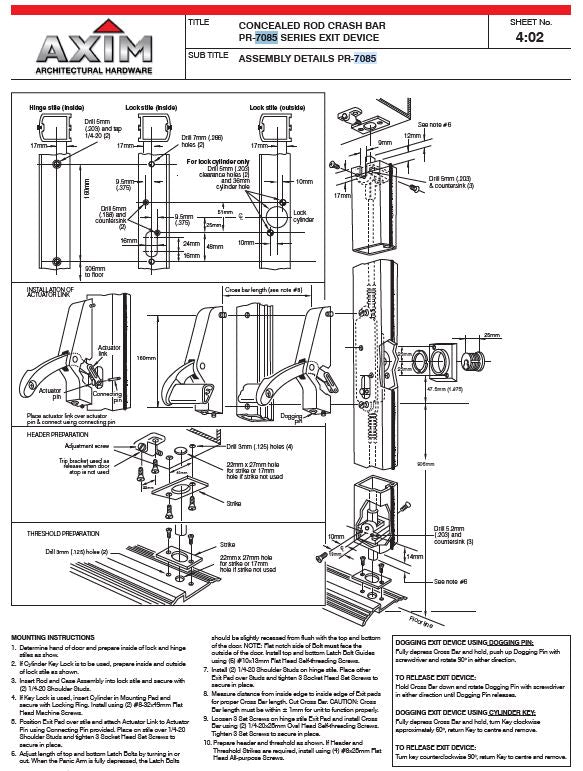

Download the Axim Technical Manual (PDF)
