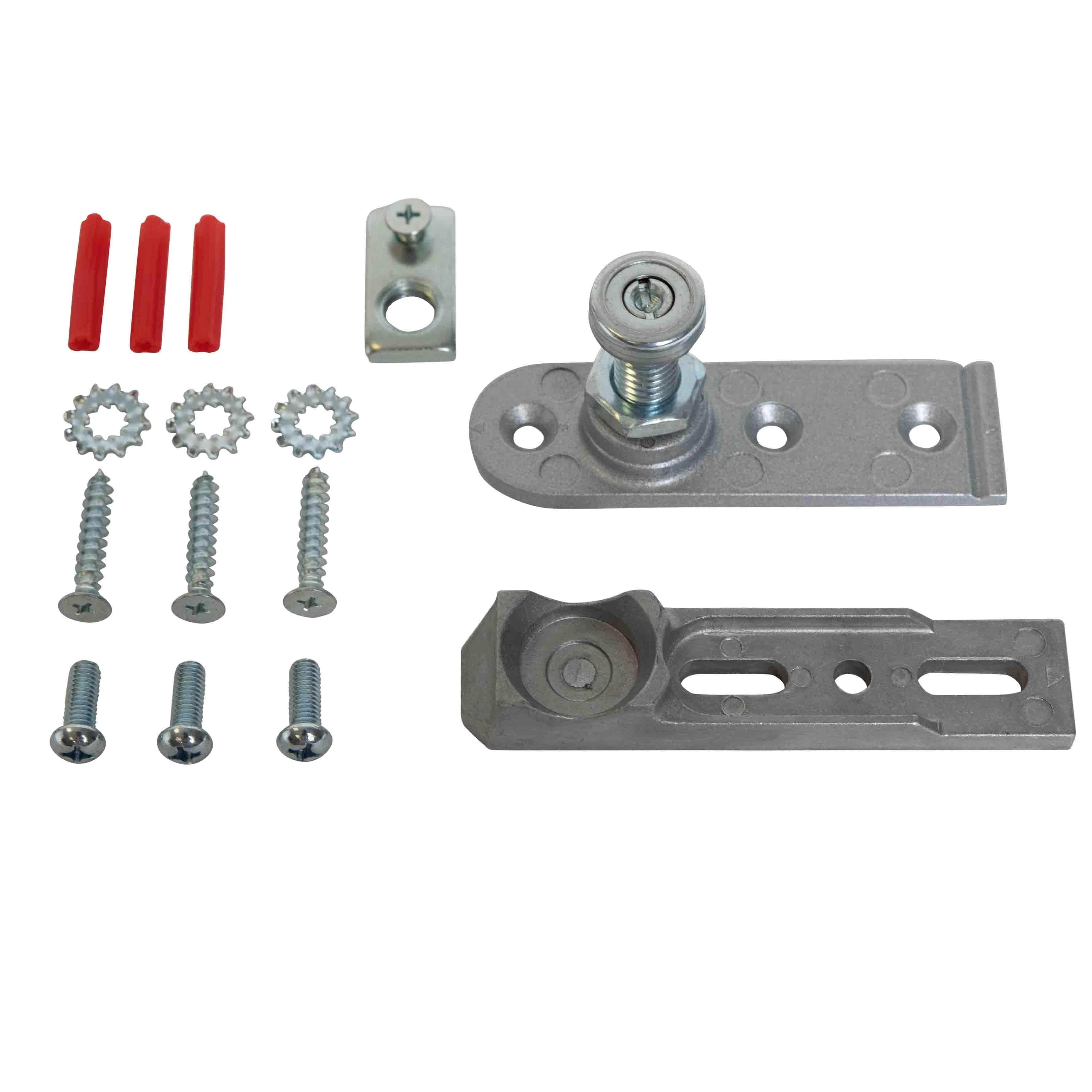

Axim Bottom Pivot Sets

Axim bottom pivot sets for use with Axim 8800 and 9900 series transom closers. The bottom pivot is the lower pivot point of the door, installed in the floor or threshold and engaging with the door leaf to allow it to swing on the transom closer above. Three variants cover the most common installation configurations: standard universal, heavy duty universal, and end load.

Variants

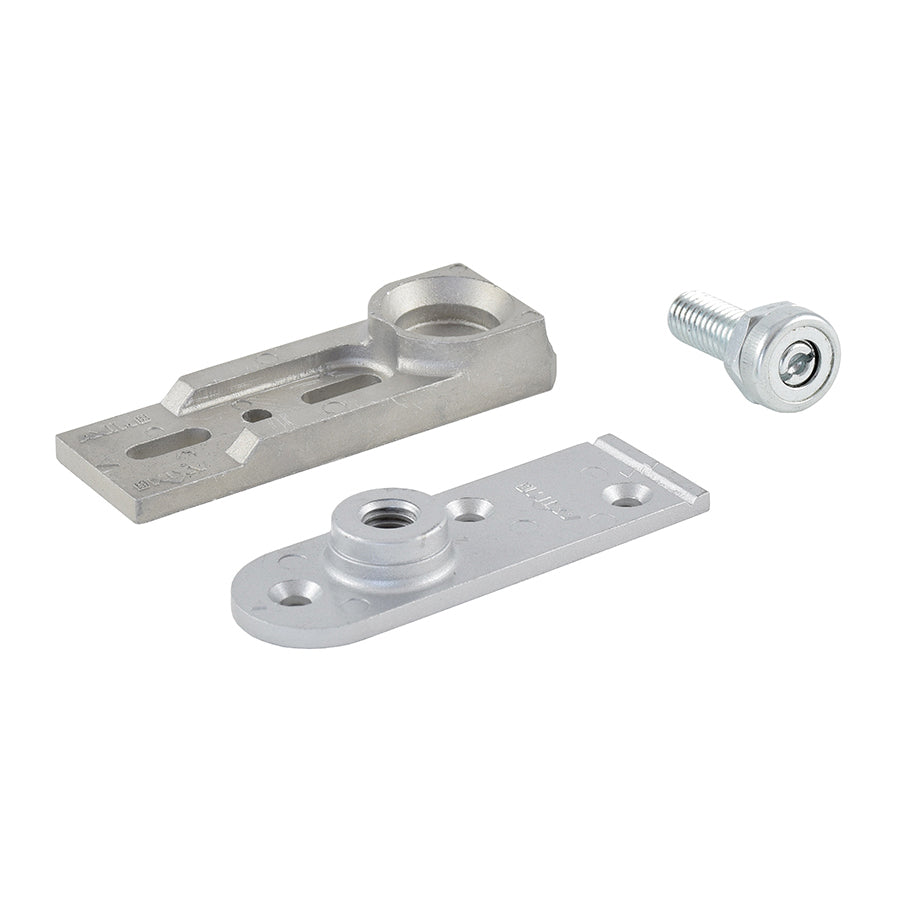

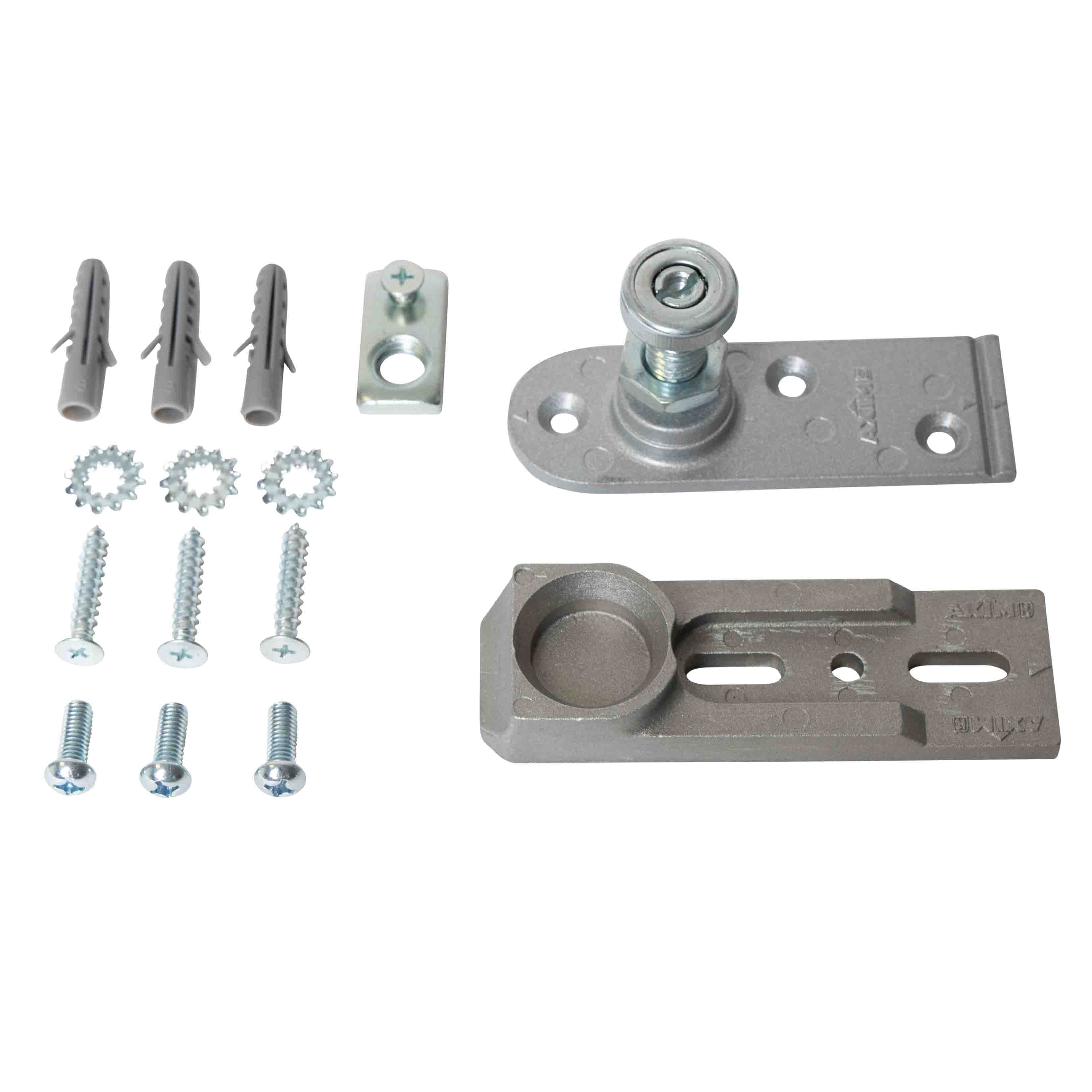

• Standard Universal (8800-02) — the most common bottom pivot for standard Axim 8800 and 9900 installations.
• Heavy Duty Universal (9500-17) — for heavier doors or high-traffic applications requiring a more robust pivot.

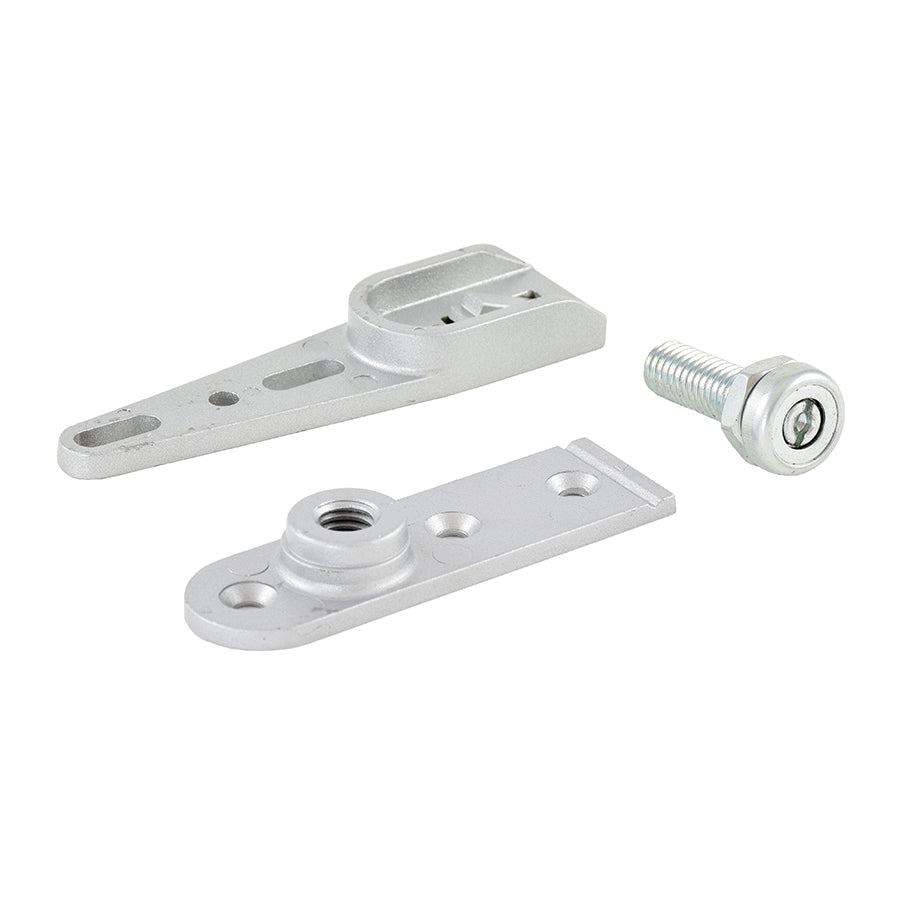

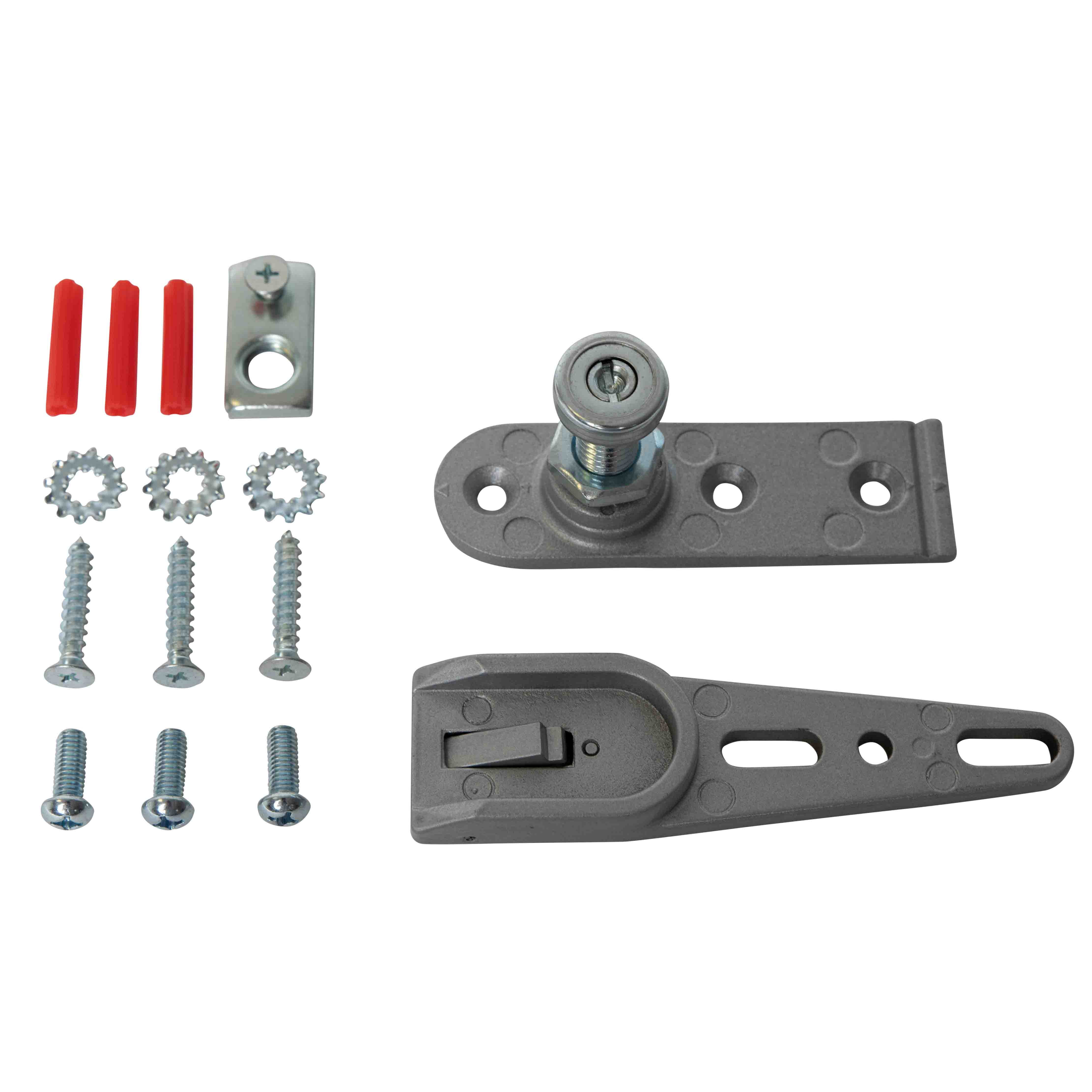

• End Load (8800-014) — for installations where the door must be lifted off the pivot for removal without dismounting the transom closer.

Compatible Closers

• Axim TC-8800 Series Transom Closer (Non Hold Open and Hold Open)
• Axim TC-9900 Universal Transom Closer

If replacing an existing pivot, check the model number on the existing unit. Contact us if unsure which variant is appropriate for your door weight and configuration.

Download the Axim Technical Manual (PDF)
