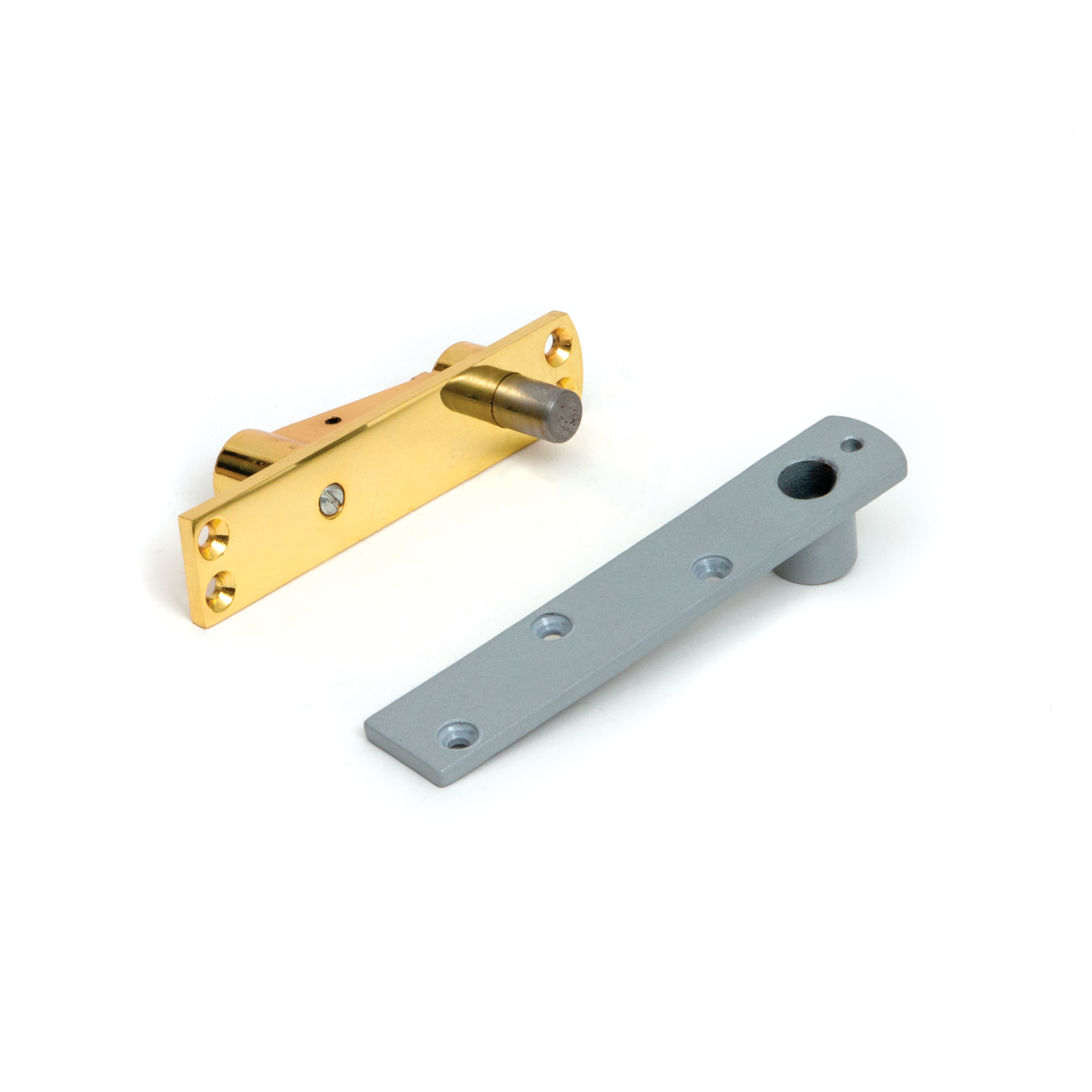

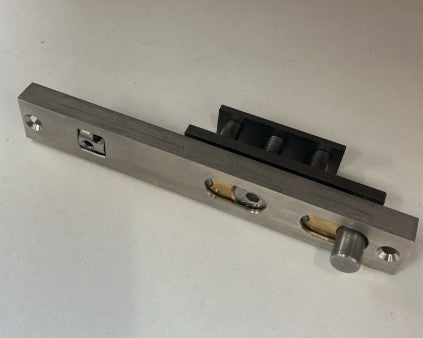

Briton Replica Top Centres

Genuine replacement top centres for older Briton floor spring installations. These replica top centres are manufactured to match the original Briton specifications and are the correct replacement for installations where the original Briton floor spring top centre has worn or failed. Three models cover the most common Briton floor spring configurations: TC13, TC30, and TC40.

Models and Dimensions

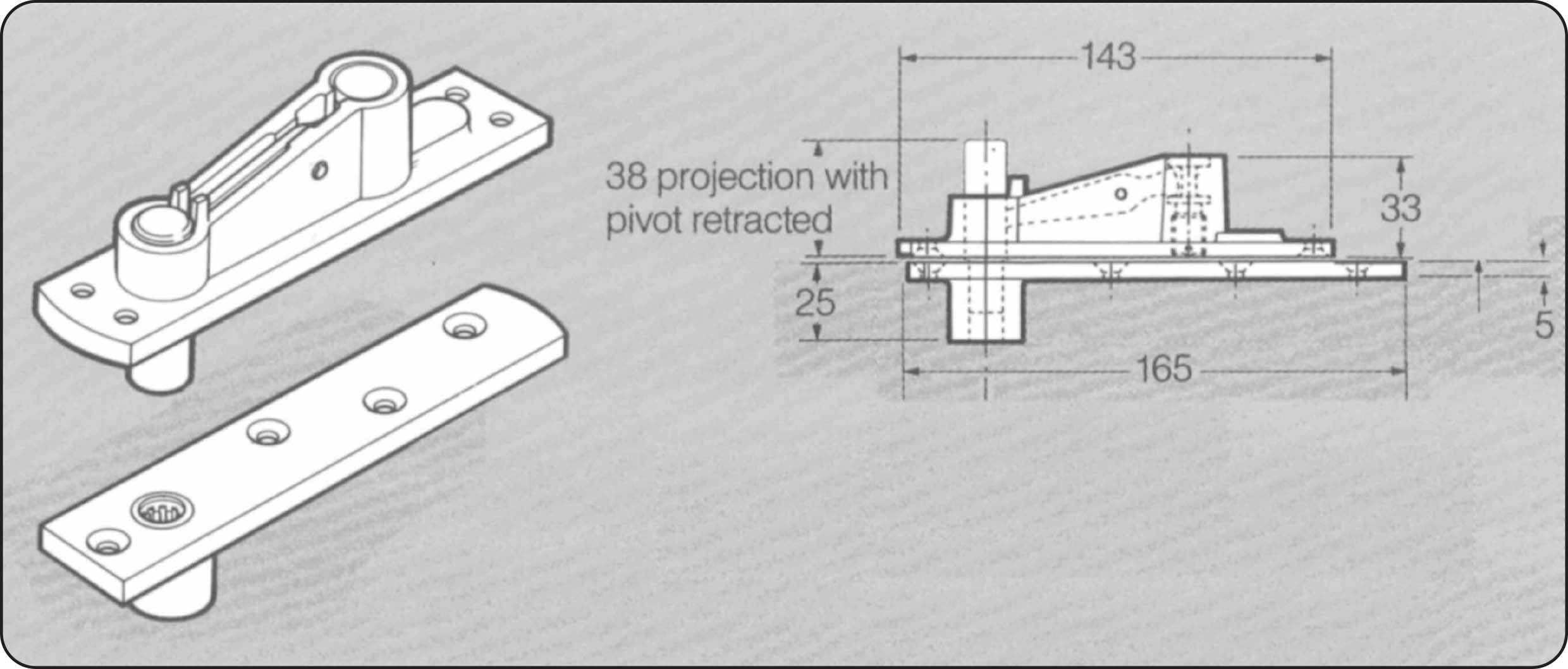

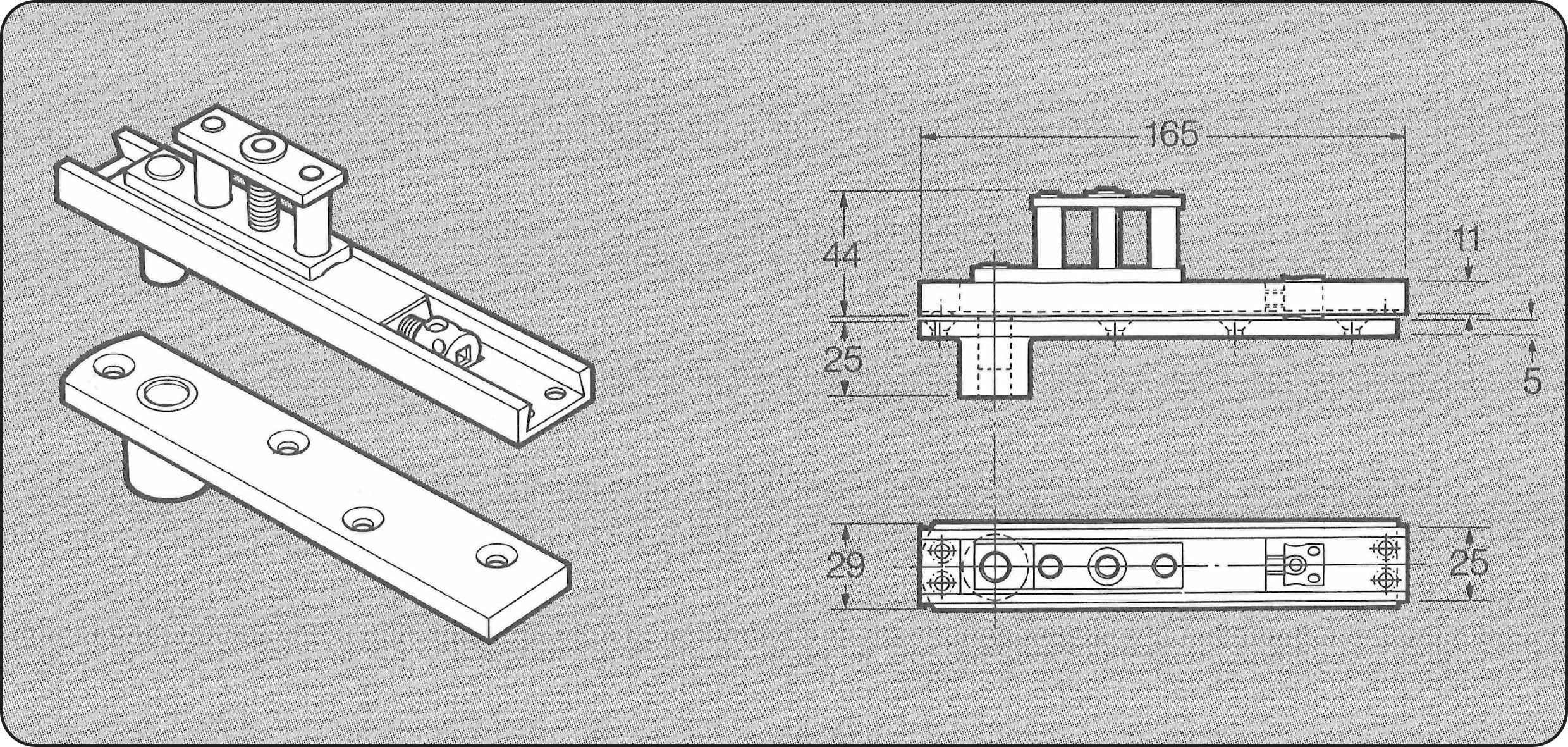

• TC13 (165 x 25mm) — suits older Briton floor spring installations with the TC13 top pivot specification. Available in Satin Chrome Plated and Polished Brass.
• TC30 (140 x 30mm) — suits Briton floor springs using the TC30 top pivot. Available in Polished Brass.
• TC40 Adjustable (114 x 31mm, female to suit TC30) — adjustable replacement to suit TC30 fixings. Useful where the original TC30 dimension is slightly different due to door or frame tolerance.

Identifying the Correct Top Centre

The top centre model number is usually stamped or cast into the existing unit. If the marking is not visible, measure the overall length and width of the existing top centre and match to the dimensions above. If you are unsure, a photograph of the existing unit sent to our team will allow us to confirm the correct replacement.

Same-day despatch on orders placed before 2pm. Free delivery on orders over £100.
