Strand FP200 Fabric Roller Blind

The Strand FP200 is a fabric roller blind designed to protect against finger trapping on the hinge side of commercial doors. When the door opens, the spring-loaded fabric blind automatically extends to cover the gap between the door and the frame — the pinch point where fingers are most commonly trapped. When the door closes, the blind retracts into its aluminium housing. The FP200 is suitable for single and double action doors including automatic doors, and is rated for use on 60-minute fire-rated doors.

The fire-retardant fabric is kept under constant tension by the roller mechanism, ensuring full coverage of the hinge gap throughout the door's range of movement. The easy-clean aluminium housing is available in three standard finishes — Satin Anodised Aluminium, White, and Bronze — and has been cycle tested to one million operations.

Key Features

• Protects against finger trapping on the hinge side of the door
• Automatic operation — fabric extends when door opens, retracts when door closes
• Fire-retardant black fabric under constant tension
• Suitable for single and double action doors, including automatic doors
• Rated for use on 60-minute fire doors
• Cycle tested to 1,000,000 operations
• Easy-clean aluminium housing
• Cannot be cut down — order the correct length

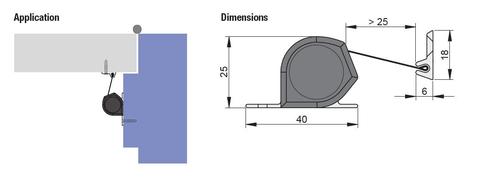

Technical Specification

• Standard length: 1925mm
• Maximum length: 2500mm
• Minimum length: 325mm
• Maximum fabric travel: 260mm
• Fabric colour: Black

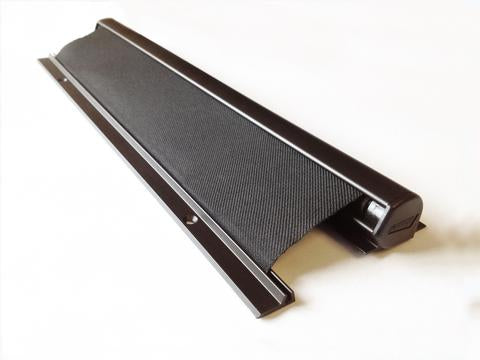

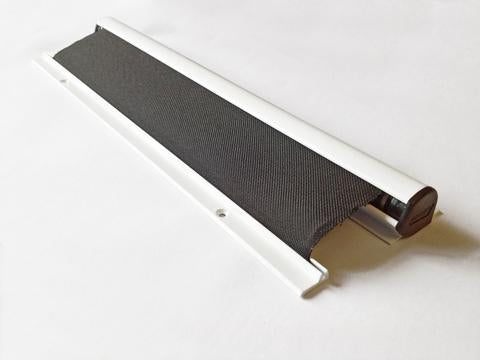

• Housing finishes: Satin Anodised Aluminium (SAA), White (RAL 9016), Dark Bronze Anodised (DBA)

Important: The FP200 cannot be cut down on site. Order the correct length for your door at the time of purchase.

View Product Brochure (PDF) | View Installation Instructions (PDF)
