dormakaba G 96 N Slide Arm & Channel

Product Description

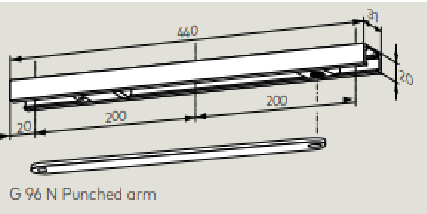

The G 96 N Punched arm is non-handed and includes the arm, slide channel, slide block, cushioned limit stay and fixing screws.

The G 96 N slide channel is tested to EN 1154 in conjunction with the ITS 96 and ITS 96 FL.

Additionally, the model size EN 2 – 4 and EN 3 – 6 has CERTIFIRE approval (CF.140) for use on timber FD30 and FD60 doors (code ITT), when installed with the approved intumescent gasket set for FD30 or FD60 supplied by dormakaba UK.

The length, width and height of mortice for the body and slide channel must be increased by 2 mm to accommodate the gasket on 30 minute doors and 4 mm on the channel only for 60 minute doors.


Sku: 52000501
Vendor: dormakaba
£32.35
