Gem Electric Strike 12/24V DC Fail Safe/Fail Secure

The GEM Electric Strike is one of the most versatile and widely installed electric releases in the UK commercial access control market. Supplied with both long and short faceplates and field-selectable for 12V or 24V DC operation and fail-safe or fail-secure mode, this single product covers the vast majority of electric strike applications without requiring separate models for different voltages or security requirements.

The ANSI-style body is reversible, making it suitable for both left and right hand doors without stocking separate handed units. Lip extensions are available to accommodate offset strikers and unusual door configurations. The dual-voltage, dual-mode design makes it the preferred choice for electricians and access control installers who want one reliable product that works across a wide range of installations.

Key Features

• Field selectable 12V DC or 24V DC operation — no need to specify voltage at time of order
• Field selectable fail-safe or fail-secure operation

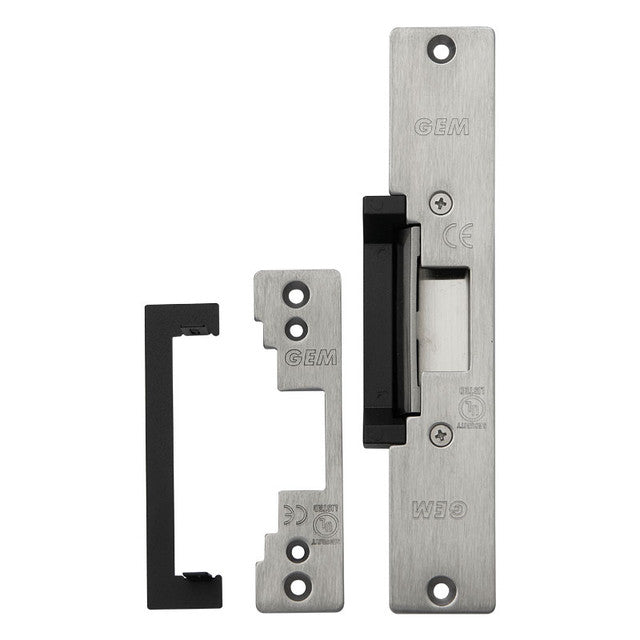

• Supplied with both long and short faceplates — suitable for timber and metal doors
• Reversible body — suits left and right hand doors
• Lip extensions available for offset striker applications
• ANSI style body for broad compatibility with standard lock cases

Technical Specification

• Voltage: 12V DC (250mA) or 24V DC (150mA) — field selectable
• Operation: Fail-safe or fail-secure — field selectable
• Body style: ANSI reversible
• Faceplates: Long and short supplied as standard

Fail-Safe vs Fail-Secure — Which Do I Need?

Fail-safe: The strike releases (door opens) when power is cut. Required on fire escape routes — in the event of a fire or power failure, the door must always be openable. Use fail-safe wherever the door is on an escape route or in a public area.

Fail-secure: The strike locks (door stays shut) when power is cut. Used on secure areas where the door must remain locked during a power failure — server rooms, secure storage, restricted access zones. Not suitable for fire escape routes.
