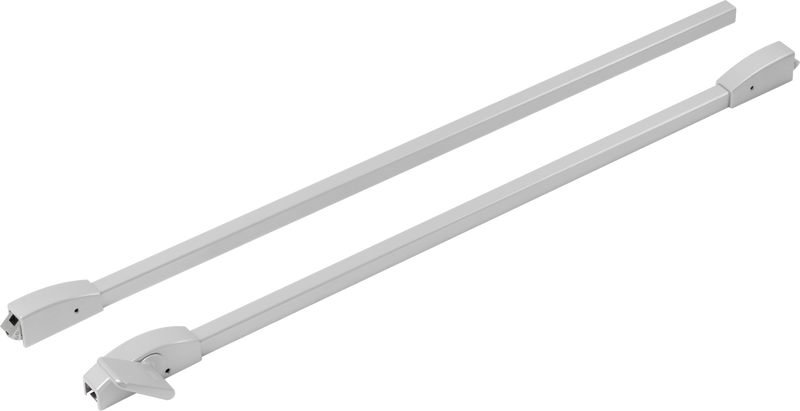

PHA 2000 Series Two Point Push Pad Panic Latch

The dormakaba PHA 2211 and PHA 2212 are two-point push pad emergency exit devices for staff-only escape route doors, tested and certified to BS EN 179. The two-point locking configuration engages the door at both top and bottom simultaneously when pushed, providing more secure closure than a single-point latch — particularly useful on taller or wider doors where single-point engagement would be insufficient.

Important: BS EN 179 emergency exit hardware is only suitable on doors used exclusively by staff or building occupants familiar with the exits. For areas accessible to the general public, BS EN 1125 panic hardware is required.

Variants

• PHA 2211 — Two-point locking for standard doors up to 2270mm high, without security anti-thrust latch. Zinc die-cast latch and keeper. Silver finish.
• PHA 2212 — Two-point locking for fire and smoke check doors up to 2270mm high, with security anti-thrust latch. Steel latch and keeper. Silver finish.

Key Features

• Tested and certified to BS EN 179 — for staff-only escape route doors
• CE marked
• Two-point locking — top and bottom engagement simultaneously
• Maximum door height: 2270mm
• Suitable for standard and fire/smoke check doors
• Can be combined with PHA 2000/PHB 3000 series components

Download the PHA 2000 Technical Brochure (PDF)
