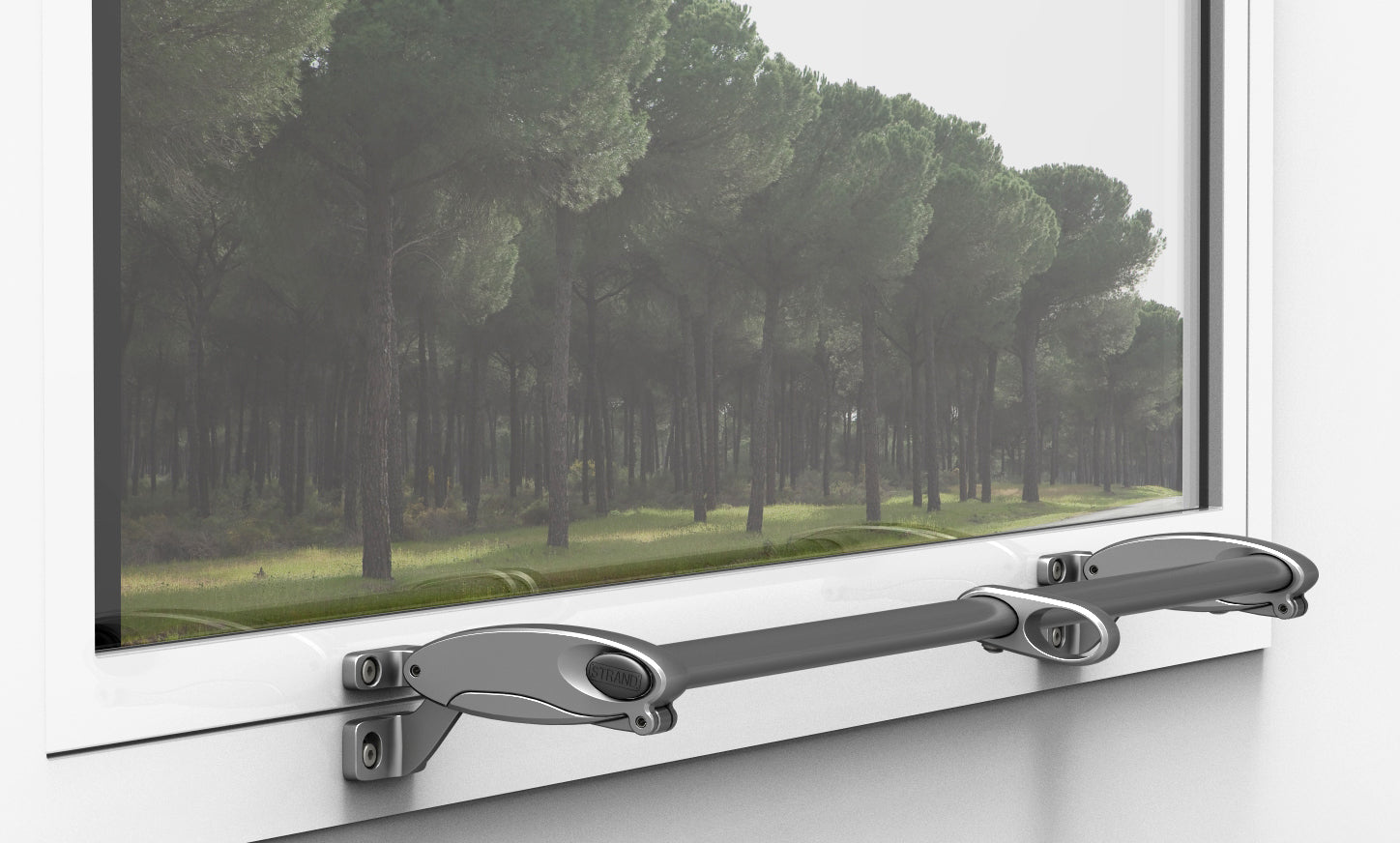

Strand Folding Opener Link Bars Only

Strand DUOFLEX link bars for connecting two or three Strand folding openers on wider window sashes. When a wider sash requires more than one opener to distribute the operating load, the openers are connected together using a link bar — this ensures both openers move simultaneously from a single point of operation. Available in three lengths: 300mm, 600mm, and 900mm.

Selecting the Right Length

The link bar should be approximately two-thirds to three-quarters of the sash width. As a guide: multiply the sash width (in mm) by 0.75, then round up to the nearest 50mm to find the required link bar length.

Example: 800mm sash width × 0.75 = 600mm → order the 600mm link bar.

Key Features

• For use with Strand DUOFLEX folding openers
• Connects two or three openers for simultaneous operation on wider sashes
• Available in 300mm, 600mm, and 900mm lengths

For the folding openers themselves, see our Strand Folding Openers page.

Download the Strand DUOFLEX Data Sheet (PDF)
