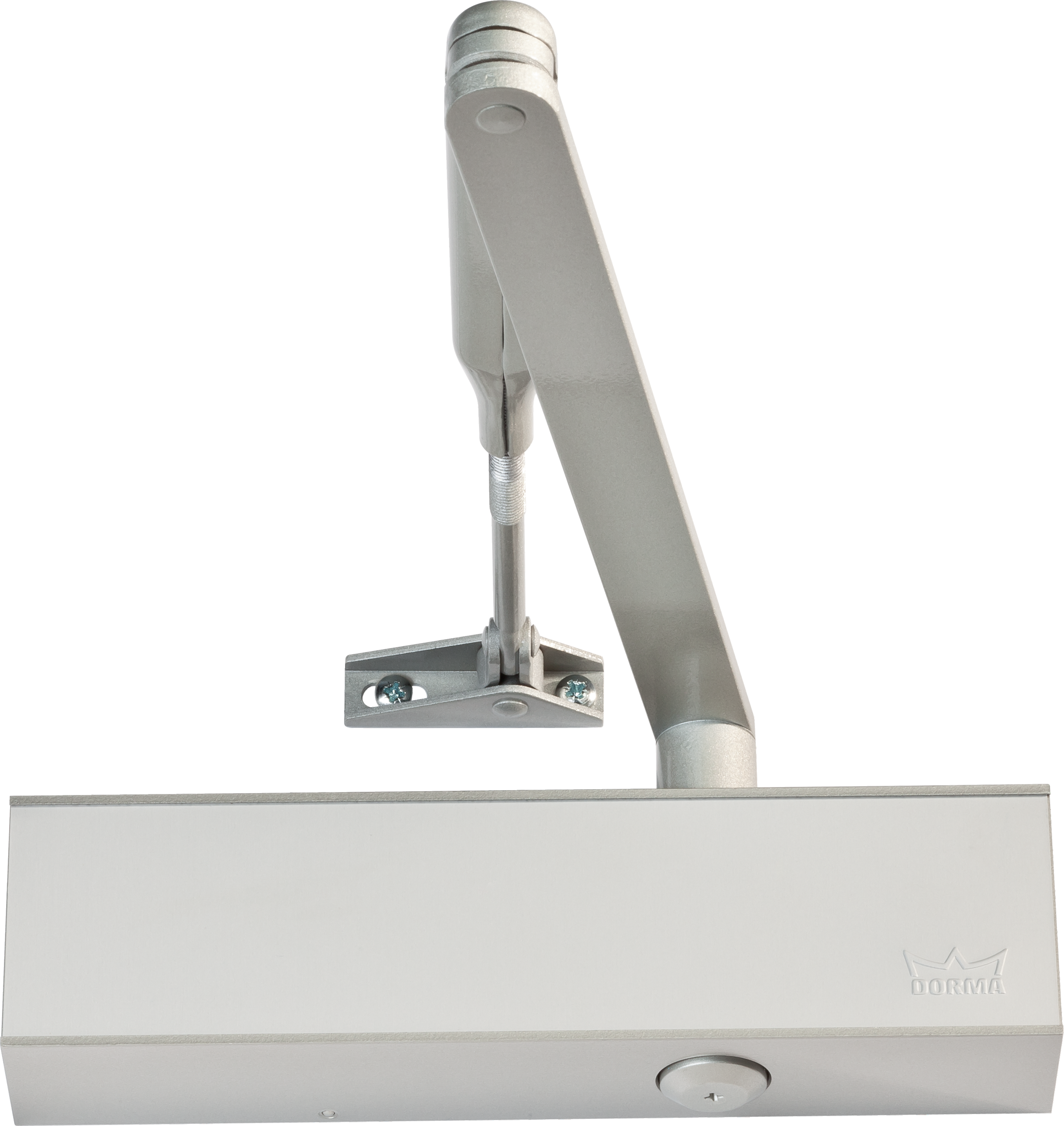

dormakaba TS73V Rack & Pinion Door Closer

The dormakaba TS73V is a compact, flat-profile rack and pinion overhead door closer for internal commercial doors including fire doors. Designed specifically for applications where a standard overhead closer would be too bulky — low-headroom doors, narrow frames, or installations where a slim profile is required — the TS73V delivers reliable closing performance in a particularly low-profile body.

CERTIFIRE approved (CF117) and tested to BS EN 1154 — suitable for fire-rated internal doors up to 1100mm wide. Adjustable power size covers the full range of standard internal door sizes from a single product. Available as a complete unit (with arm) or body only for replacement installations where the arm is reused.

Key Features

• CERTIFIRE approved CF117
• Tested to BS EN 1154 — suitable for fire-rated internal doors
• Compact flat profile — suits low-headroom and narrow-frame applications
• Maximum door width: 1100mm
• Adjustable power size — one unit covers all standard internal door sizes
• Intelligent backcheck — adjusts automatically to opening speed
• Suitable for single and double leaf doors
• All standard fixing positions

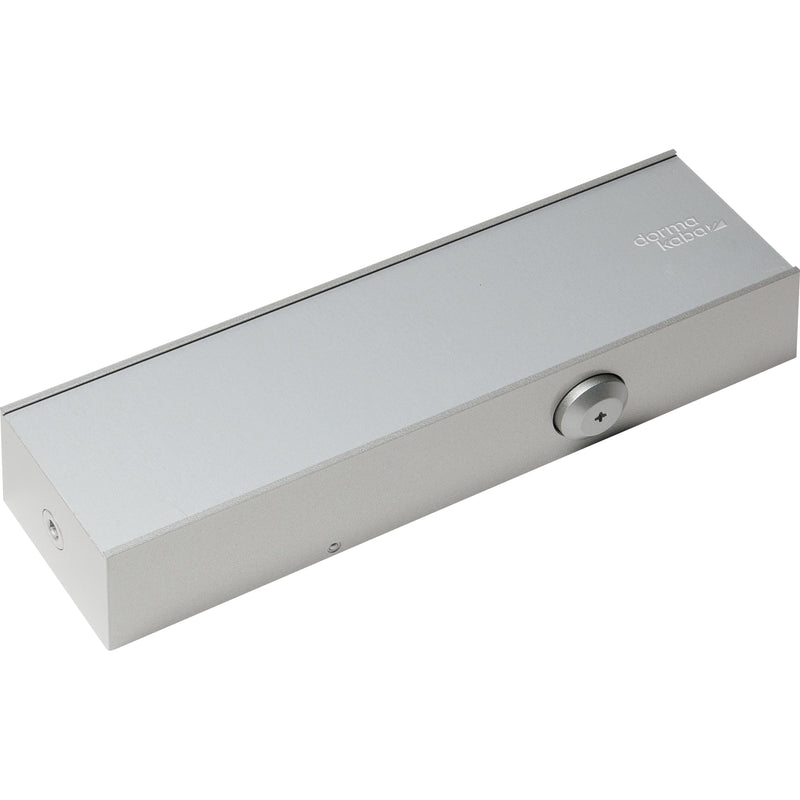

• Available as complete unit (with arm) or body only

Download the TS73V Brochure (PDF) | Fitting Instructions (PDF)
