Axim PR-7085P Concealed Rod Paddle Exit Device

Axim PR7085 “P” Series

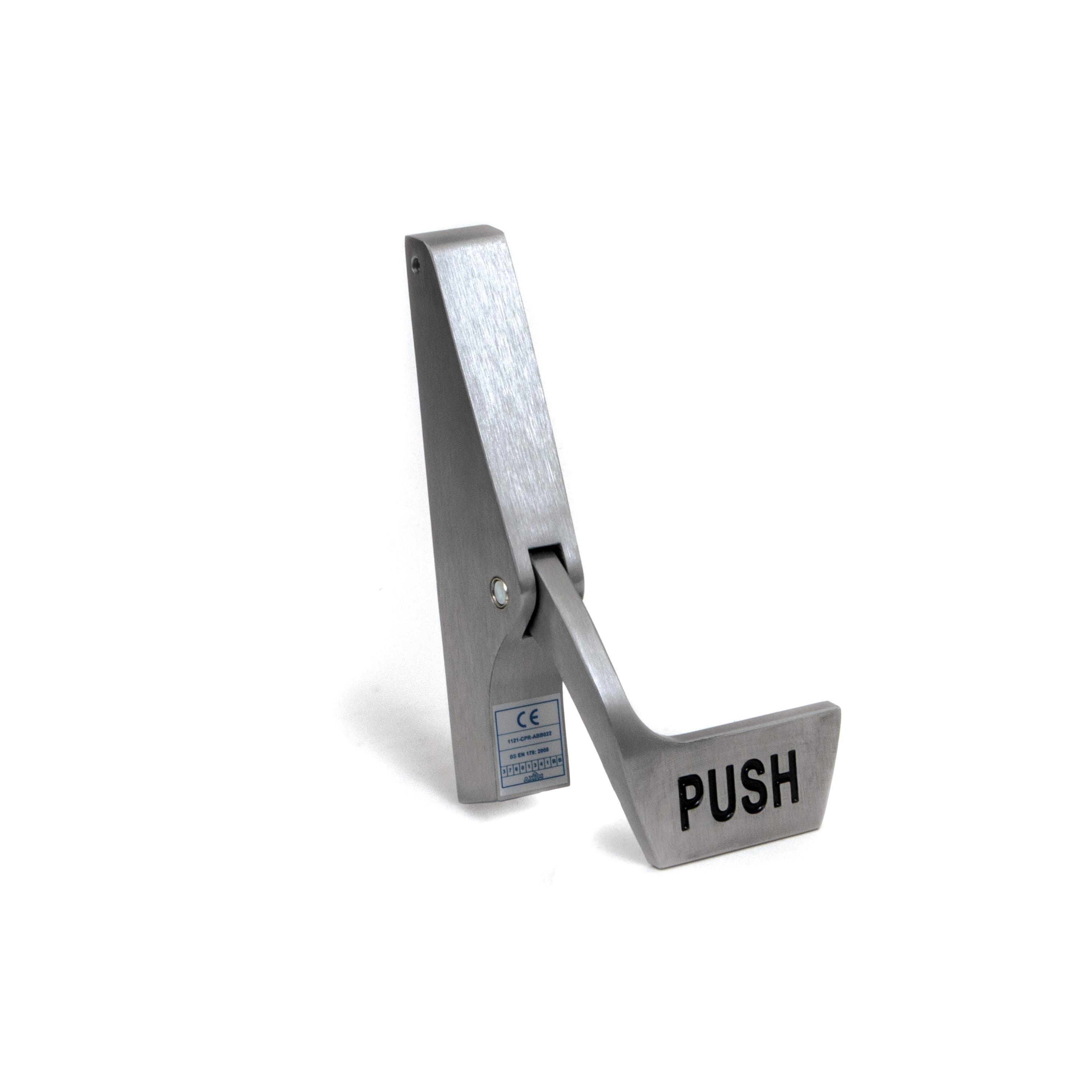

The Axim Series 7085P is a concealed rod panic exit device which provides
two point locking at the top and the bottom of the door, installed to the opening door jamb with a push paddle handle with engraved “PUSH”, compliant to BS EN 179.

The push paddle handle is finished in satin chrome and the operating paddle handle and lever does not exceed a 120mm x 186mm projection.

The concealed rods are steel, 8.5mm diameter and provide a 16mm bolt
throw. The throw can be adjusted to suit the application. Suitable for any
door width and the standard model height is 2135mm and 300mm coupling
rods are available for taller doors.

The Axim Series PR-7085P uses plated steel and stainless
steel components with heavy duty lever springs and internal mechanisms for
durable operation.
