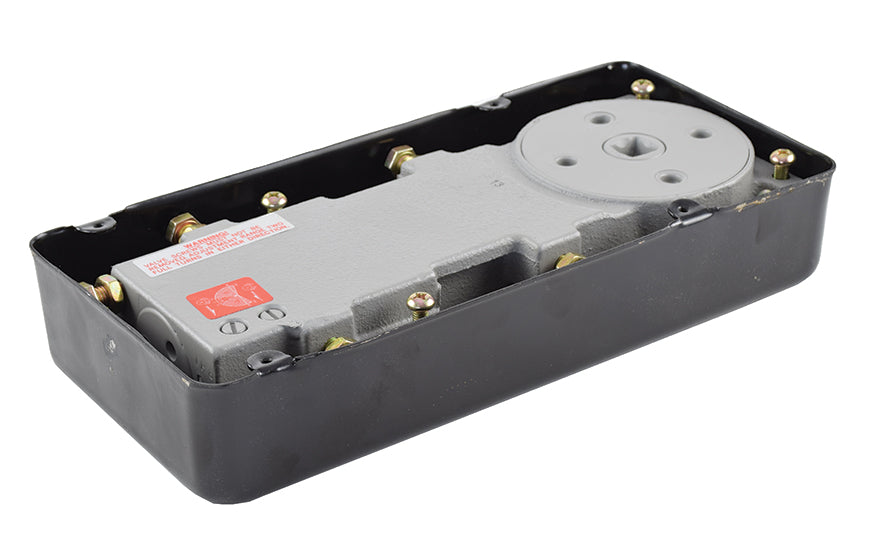

Axim FS4000 Series Floor Spring

The Axim FS4000 is a universal medium-duty floor spring for commercial single and double action doors up to 1200mm wide and 120kg in weight. The compact body suits a wide range of standard subfloor installations and is available with a variety of spindle options to suit different door types and floor coverings. Two separate valve screws provide independent control of closing speed and latch speed, and a built-in backcheck at 130° protects the door and frame from impact damage.

Key Features

• Maximum door width: 1200mm
• Maximum door weight: 120kg
• Single and double action operation
• 2 independent valve screws — closing speed and latch speed
• Backcheck at 130°
• Full hydraulic control
• Various spindle options available for different door types
• Stainless steel cover plates available separately

Accessories Required

A cover plate and top centre are required to complete the installation. See our Axim FS4000 Cover Plate and Axim FS4000 Top Centre pages.

Download the Axim FS4000 Data Sheet (PDF)
