dormakaba G 96 N20 Narrow Slide Arm & Channel

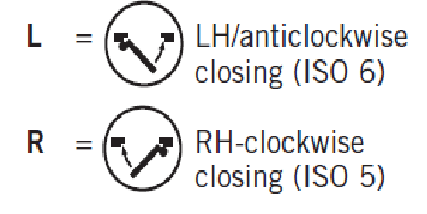

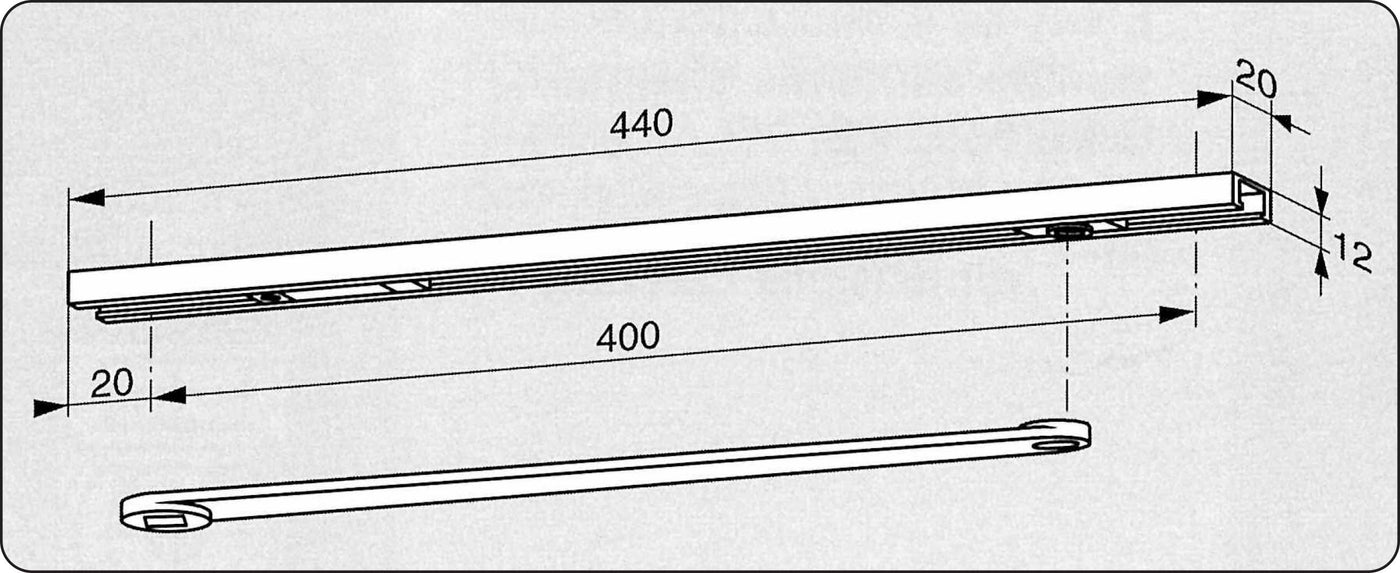

The G 96 N20 slide channel pack is handed, and includes the arm, slide channel, slide block, cushioned limit stay and fixing screws, and can be combined with both door closer sizes in the ITS 96 range.

The G 96 N20 slide channel is tested to EN 1154 in conjunction with the ITS 96 and ITS 96 FL.

Additionally, the model size EN 2 – 4 and EN 3 – 6 has CERTIFIRE approval (CF.140) for use on timber FD30 and FD60 doors (code ITT), when installed with the approved intumescent gasket set for FD30 or FD60 supplied by dormakaba UK.

The length, width and height of mortice for the body and slide channel must be increased by 2 mm to accommodate the gasket on 30 minute doors and 4 mm on the channel only for 60 minute doors.
