dormakaba ED 100/250 XEA Arms

Replacement arm sets for use with dormakaba ED 100 and ED 250 XEA LE automatic low energy swing door operators. Three arm configurations are available to suit different door and frame arrangements — standard arm for push applications, slide channel for pull applications, and CPD cranked slide channel for deeper reveal pull applications.

Arm Configurations

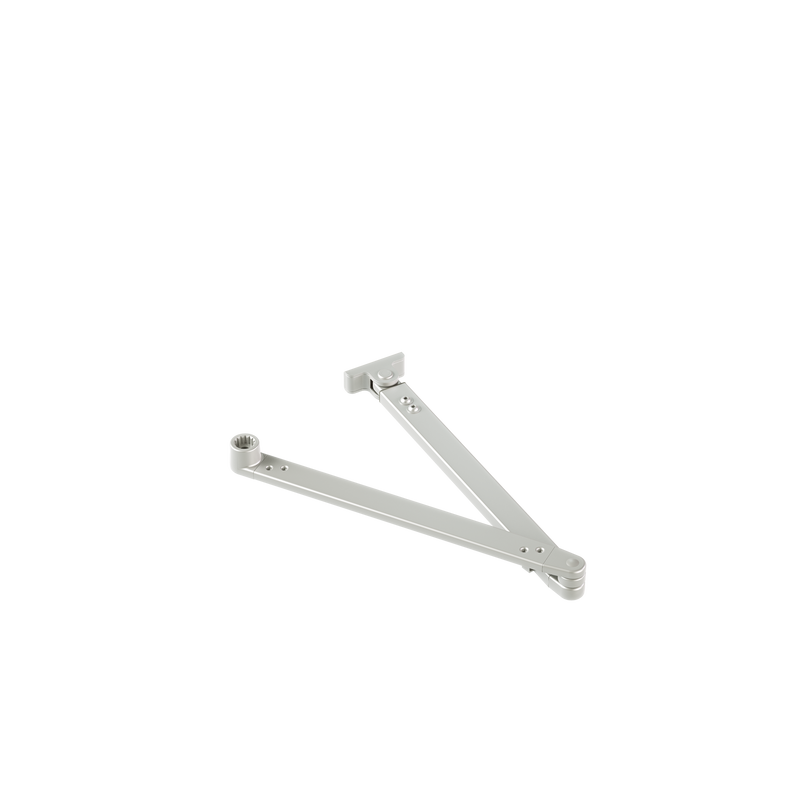

• Standard Arm — for push-side applications where the operator pushes the door open. Suits reveal depths of 0–225mm from the face of the operator to the door hinge centreline.
• Slide Channel — for pull-side applications where the operator pulls the door open. Suits reveal depths of +/–30mm.
• Cranked CPD Slide Channel — for pull-side applications with a deeper reveal of 30–60mm, where the standard slide channel cannot reach.

Compatibility

These arms are specifically designed for the dormakaba ED 100/250 XEA LE automatic door operator. They are not compatible with earlier ED series operators or other manufacturers' products. Confirm the operator model before ordering.

Download the dormakaba ED 100/250 XEA Technical Brochure (PDF)
