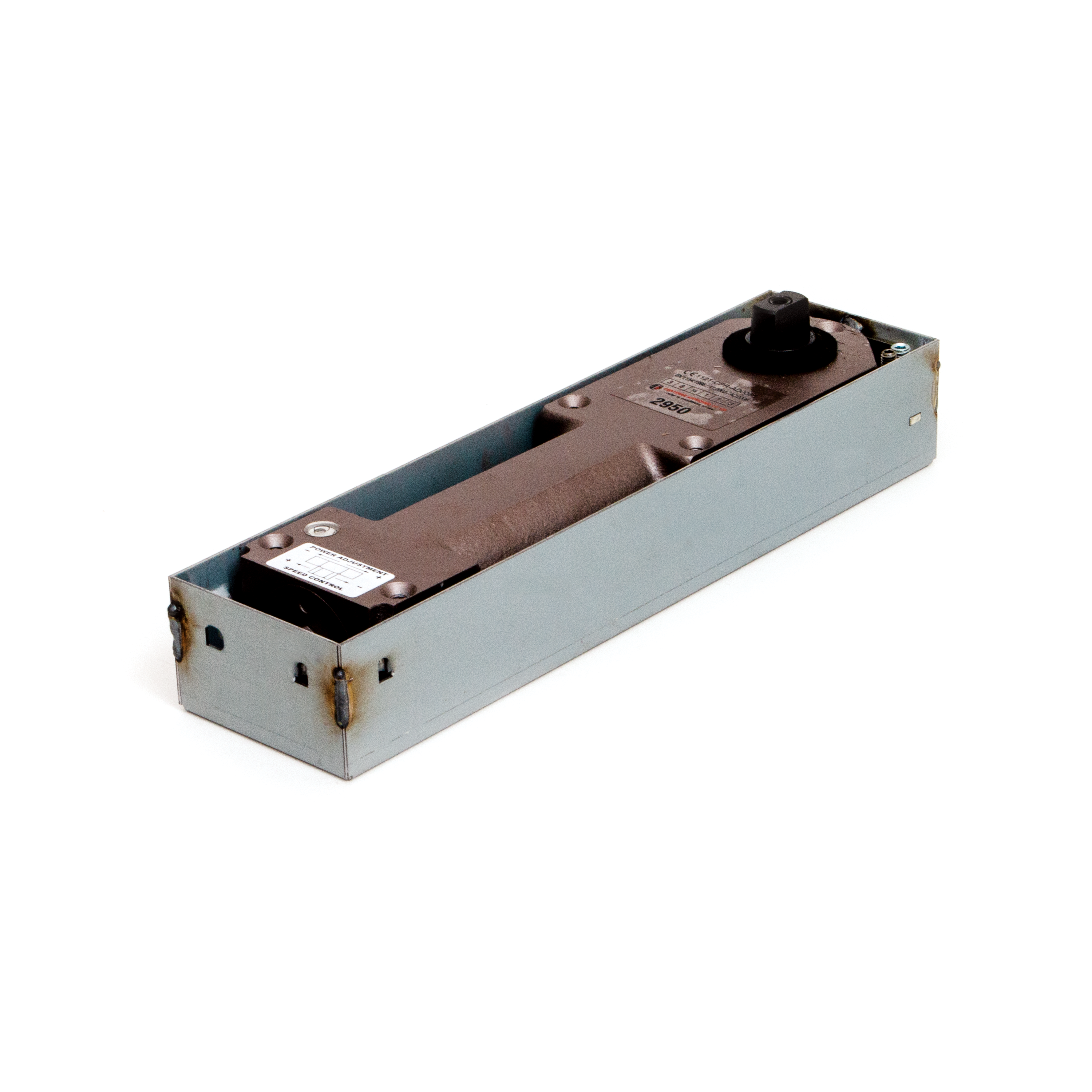

Exidor Floor Springs 2950 & 990

Exidor floor springs for concealed installation in commercial aluminium, timber, and glass doors. Part of the Exidor range (formerly Jebron Cavalier and Commando), these floor springs combine reliable CE-marked performance with practical installation features including a built-in visual spirit level to aid accurate setting during installation.

Available in two power ranges — EN1–4 and EN1–6 — covering the full spectrum from standard internal doors through to heavy commercial doors requiring maximum closing force. Both variants are non-hold-open, making them suitable for fire-rated door assemblies. CERTIFIRE approved.

Key Features

• CE marked and CERTIFIRE approved — suitable for fire-rated doors
• Non hold-open — door always returns to closed position
• Built-in visual spirit level for accurate installation alignment
• Suitable for single and double action doors
• Cement box dimensions: 307mm L x 78mm W (EN1–4: 50mm deep / EN1–6: 60mm deep)

Variants

• EN1–4 — suits standard to heavy commercial doors. 50mm deep cement box.
• EN1–6 — suits the heaviest commercial doors requiring maximum closing force. 60mm deep cement box. Note the deeper box requires additional floor depth.

Cover Plate and Top Centre Required

Cover plates and top centres for Exidor floor springs are sold separately. Contact us if you need help identifying the correct accessories for your installation.

Download the Exidor Floor Spring Data Sheet (PDF)
