Revolving Door Lock

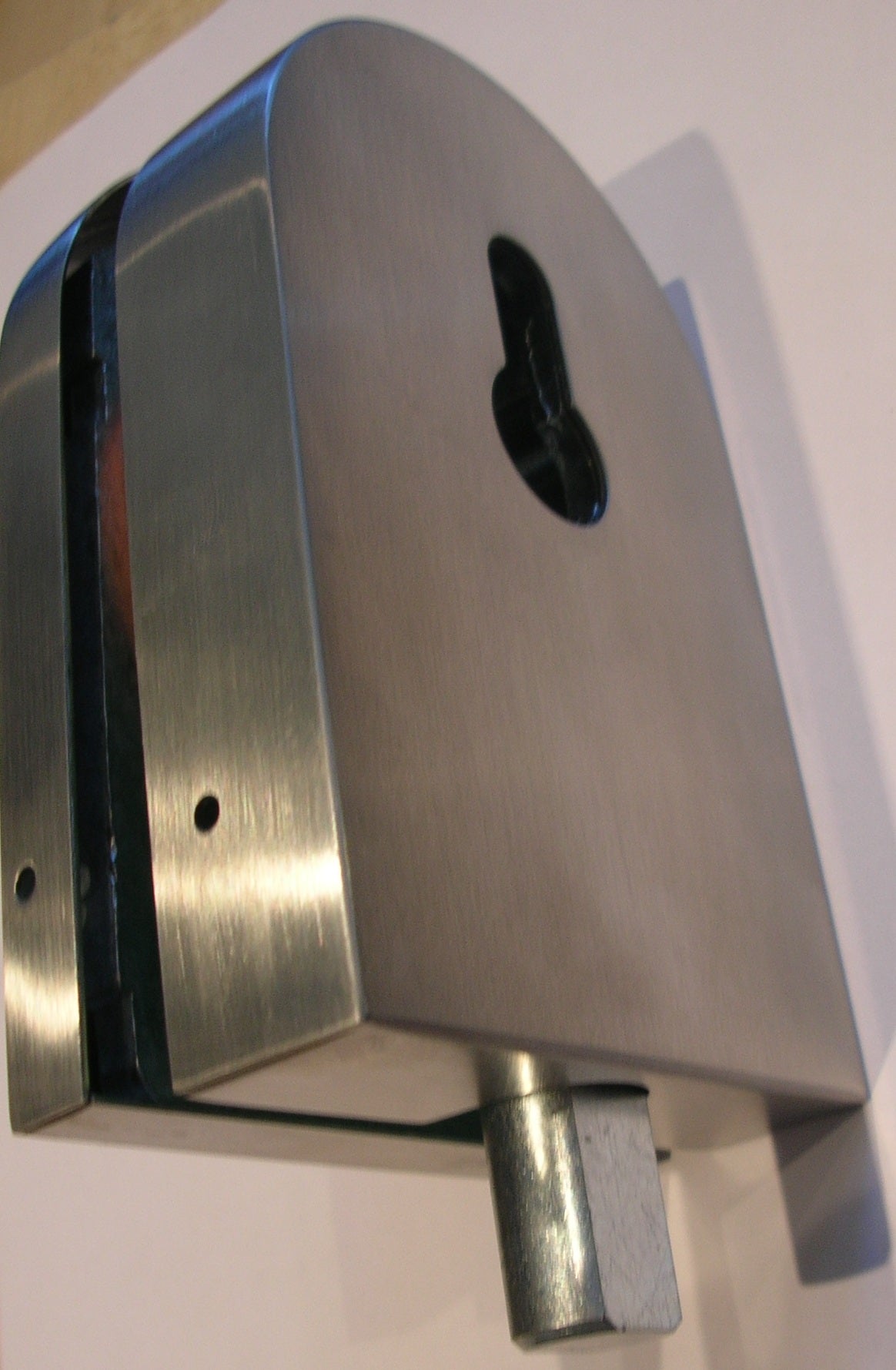

Mortice lock case for glass revolving doors, designed for use on Boon Edam and similar commercial revolving door systems where a concealed mortice lock is required within the glass door leaf. The lock case fits within a 55mm diameter hole in the glass and accepts a standard Euro profile cylinder for keyed operation from the outside, with a double-throw bolt providing secure locking when engaged.

Key Features

• For glass revolving doors — Boon Edam and similar systems

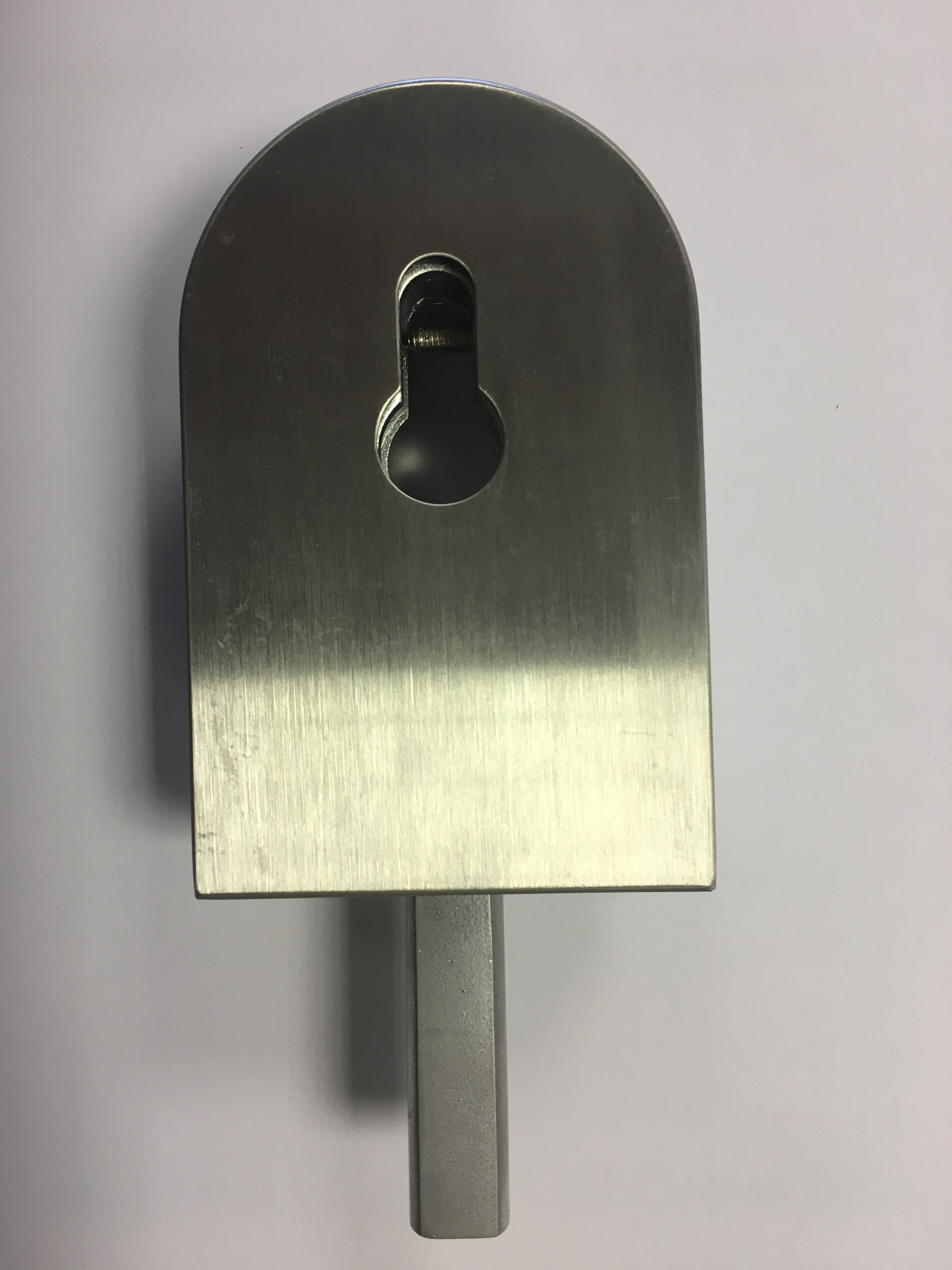

• Extended bolt: 50mm in open position, 70mm when fully extended (double throw)
• Euro profile cylinder — specify and order your cylinder separately
• Suits glass thickness 8–12mm

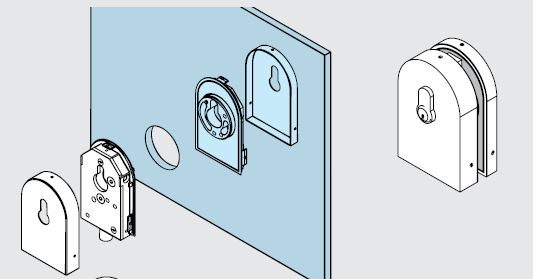

• Glass preparation: 55mm diameter hole
• Concealed installation — sits within the glass leaf

Euro Profile Cylinder Required — Sold Separately

This lock case accepts any standard Euro profile cylinder. For Abloy high-security cylinders or dormakaba cylinders suited to master key systems, see our cylinder range. Measure the glass thickness before ordering a cylinder to ensure the correct cylinder length is selected.

Contact us if you need help confirming compatibility with your specific revolving door system. Same-day despatch on orders placed before 2pm. Free delivery on orders over £100.
