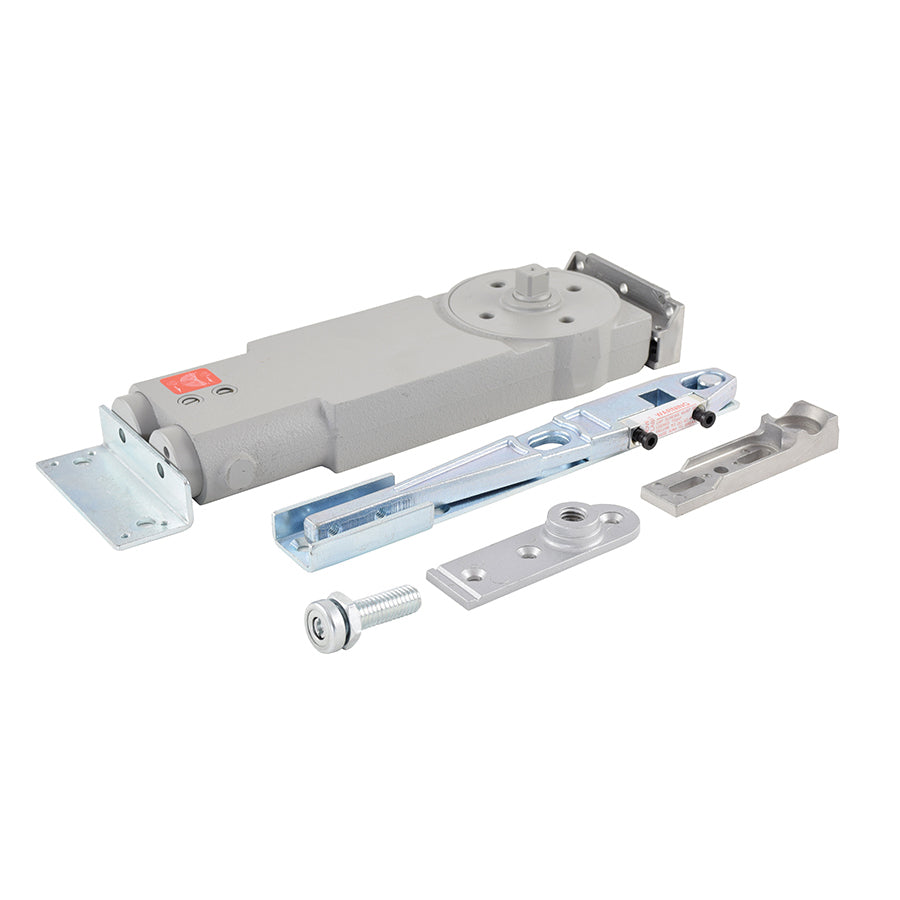

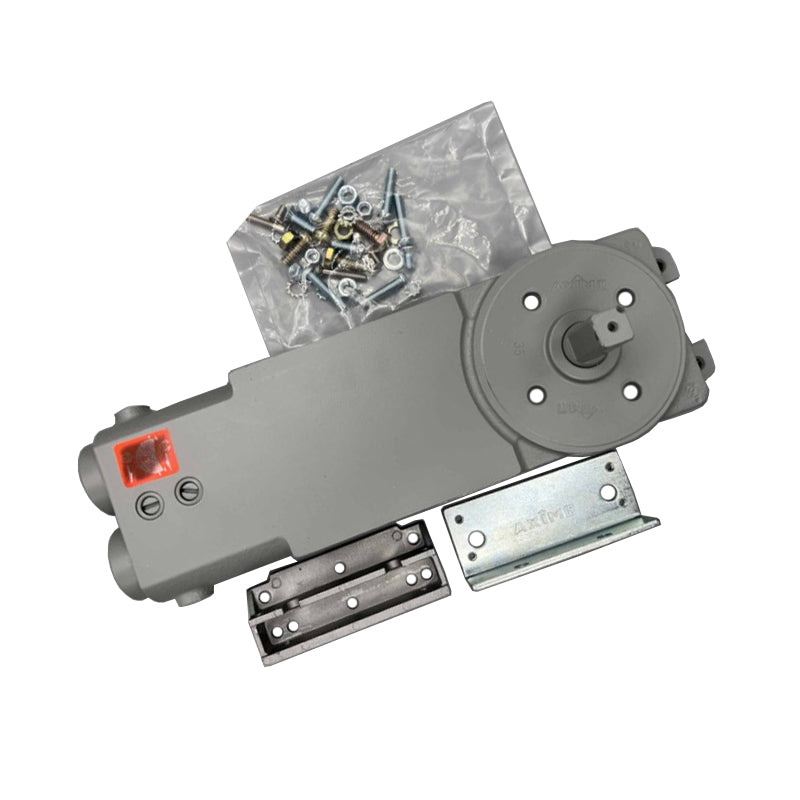

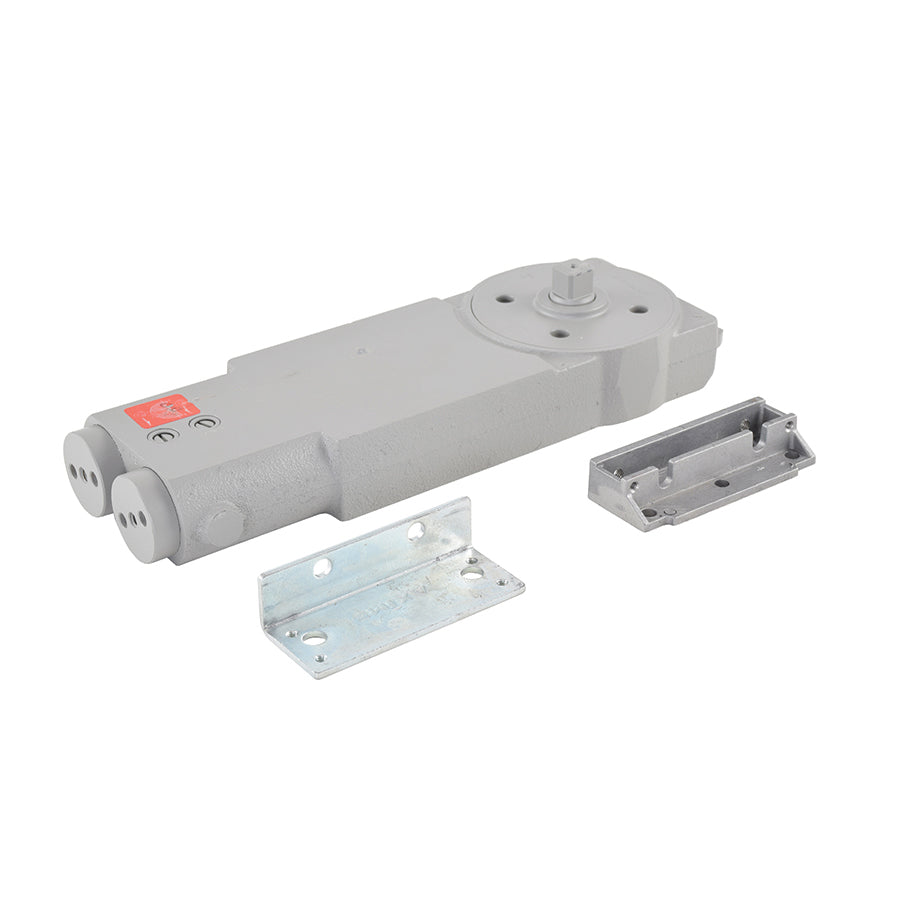

Axim 8800 Transom Closer - Non Hold Open

The Axim TC-8800 is a market-leading concealed transom closer for commercial aluminium, timber, and glass doors. The closer is housed entirely within the door leaf and transom, leaving no visible external hardware — making it the preferred choice for high-specification commercial entrances, retail shopfronts, offices, and any installation where aesthetics are a priority alongside performance and compliance.

The TC-8800 Non Hold Open version is the standard specification for fire-rated and general commercial applications where the door must always return to closed. Three power sizes — light, medium, and heavy duty — cover door widths up to 1150mm and door weights up to 100kg.

Key Features

• Tested to BS EN 1154 — suitable for fire-rated doors
• CE marked
• Non hold-open — door always returns to closed position
• Three power sizes: light duty, medium duty, heavy duty
• Maximum door width: 1150mm / Maximum door weight: 100kg
• 2 independent valves for closing speed and latching speed adjustment
• Preset cushion backcheck
• Standard and extended spindle variants (10mm, 15mm)
• Anti-finger-trap package options available

Selecting the Right Power Size and Spindle

Medium duty covers the majority of standard commercial doors — select for doors up to approximately 900mm wide and 80kg. Standard spindle suits most aluminium profiles; extended spindle (10mm or 15mm) for deeper transom profiles.

Download the Axim TC-8800 Technical Data Sheet (PDF)
